Exported Files

We export a number of files for use locally.

Mesh .parquet .csv

TBD.

Contacts .parquet .csv

TBD.

Report .json

TBD.

Plot .csv

This file is available in .csv format, and contains data required for plotting the quality of a 3d print.

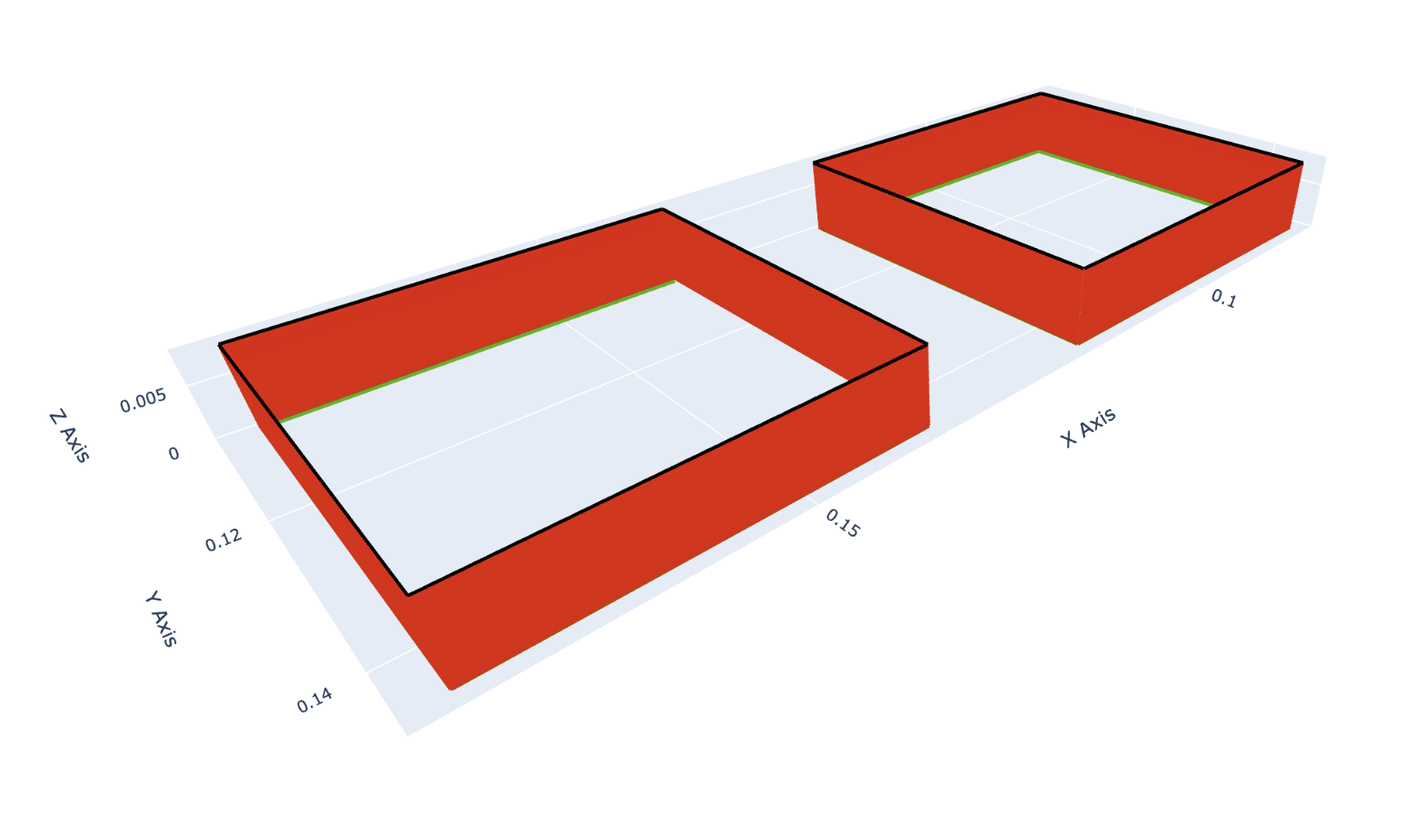

The example below shows how to use this file to generate an interactive 3D plot of the quality:

1. Ensure dependencies

   #!/bin/bash
   uv init
   uv add polars plotly

2. Import dependencies

   from typing import List
   from dataclasses import dataclass
   import plotly.graph_objects as go
   import polars as pl

3. Load plot data and group by group.

   df = pl.read_csv("plot.csv")
   df = df.rename({"meshIndex": "mesh_index"})  # Convenience using snake case
   grouped_df = df.group_by("group")

4. Write a convenience function to produce correct colors

   @dataclass
   class Color:
       r: float
       g: float
       b: float

   def get_gradient_rgb(raw_value: float | None) -> Color:
       if raw_value == None:
           return Color(r=0, g=0, b=0)

       clamped_value = max(-1, min(1, raw_value))

       if clamped_value <= 0:
           t = clamped_value + 1
           return Color(r=0, g=round(t * 255), b=round((1 - t) * 255))
       else:
           t = clamped_value
           return Color(r=round(t * 255), g=round((1 - t) * 255), b=0)

5. Iterate over the data & produce lines for the plot

   lines: List[go.Scatter3d]  = []
   for group_id, group_data in grouped_df:
       shifted_group_data = group_data.shift(-1)

       for previous_row, row in zip(group_data.iter_rows(named=True), shifted_group_data.iter_rows(named=True)):
           color = get_gradient_rgb(previous_row["quality"])
           line = go.Scatter3d(
               x=[previous_row["x"], row["x"]],
               y=[previous_row["y"], row["y"]],
               z=[previous_row["z"], row["z"]],
               mode="lines",
               line=dict(color=f"rgb({color.r},{color.g},{color.b})", width=5),
           )
           lines.append(line)

6. Plot the data

   layout = go.Layout(
       scene=dict(
           xaxis_title="X Axis",
           yaxis_title="Y Axis",
           zaxis_title="Z Axis",
           aspectmode="data"
       ),
       showlegend=False
   )
   fig = go.Figure(data=lines, layout=layout)
   fig.show()

7. The browser should open and a plot viewable.
